Monolithic Crystal Filter

DIP Series

Applications
Pager, Cordless telephone, Portable telephone, VHF radio, SSB...

Specification

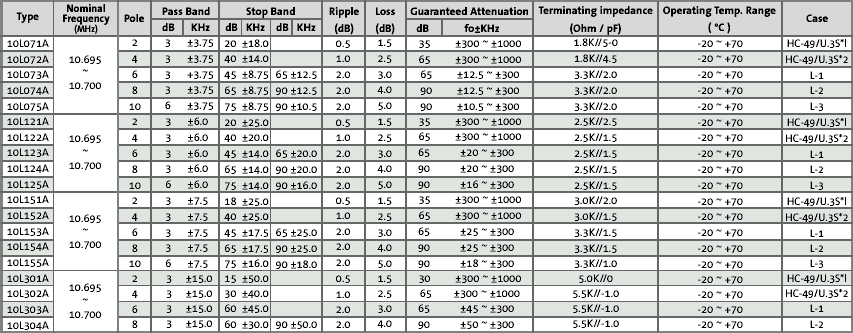

For normal 10.7MHz series

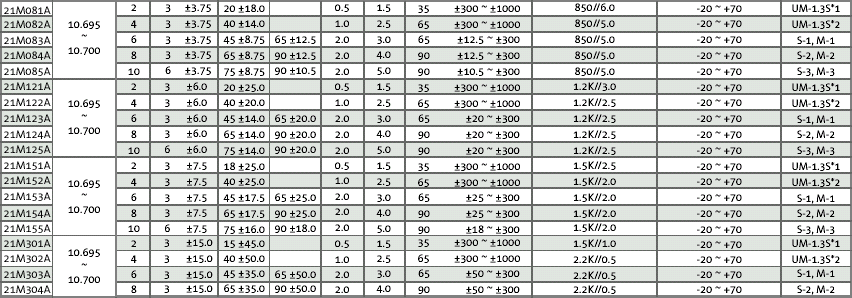

For normal 21.4MHz series

For Pager

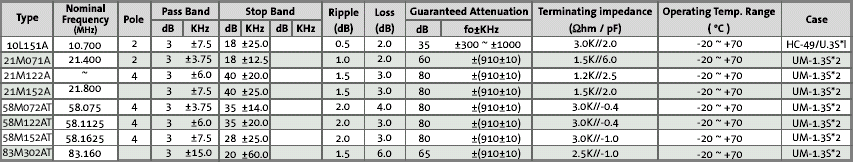

For Cordless Phone

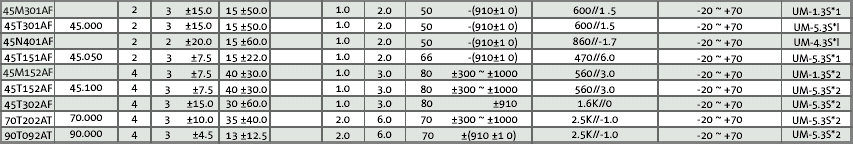

For Portable Telephone

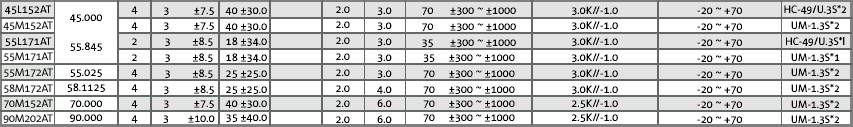

For VHF Radio

For SSB

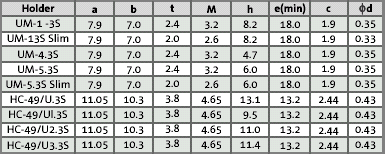

Dimension (Unit:mm)

Monolithic Crystal Filter

SMD Series

・Applications
Pager, Cordless telephone, Portable telephone, VHF radio...

・Specification

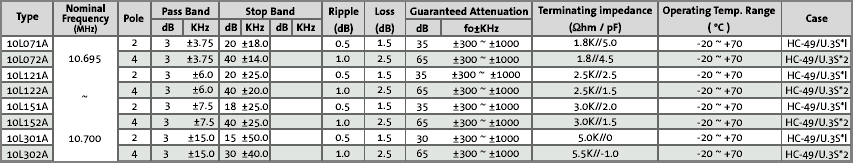

For normal 10.7MHz series

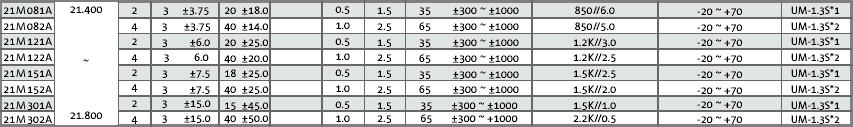

For normal 21.4MHz series

For Pager

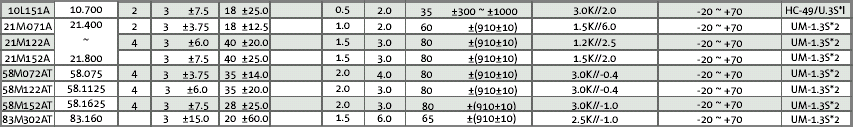

For Cordless Phone

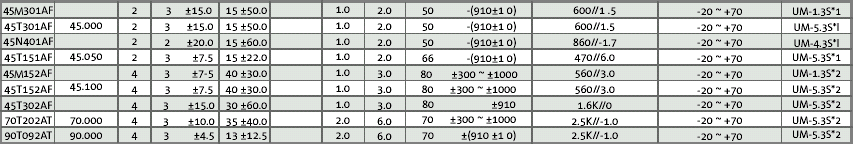

For Portable Telephone

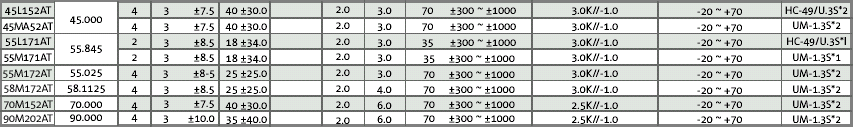

For VHF Radio

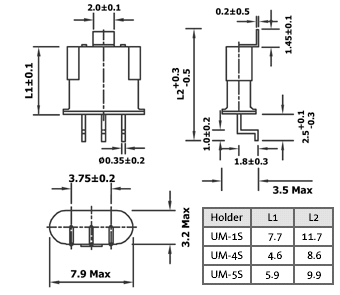

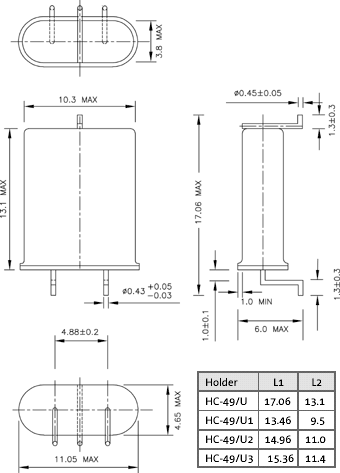

Dimension (Unit:mm)
UM Series		HC 49U Series
